1. Main Specifications
|
Product |

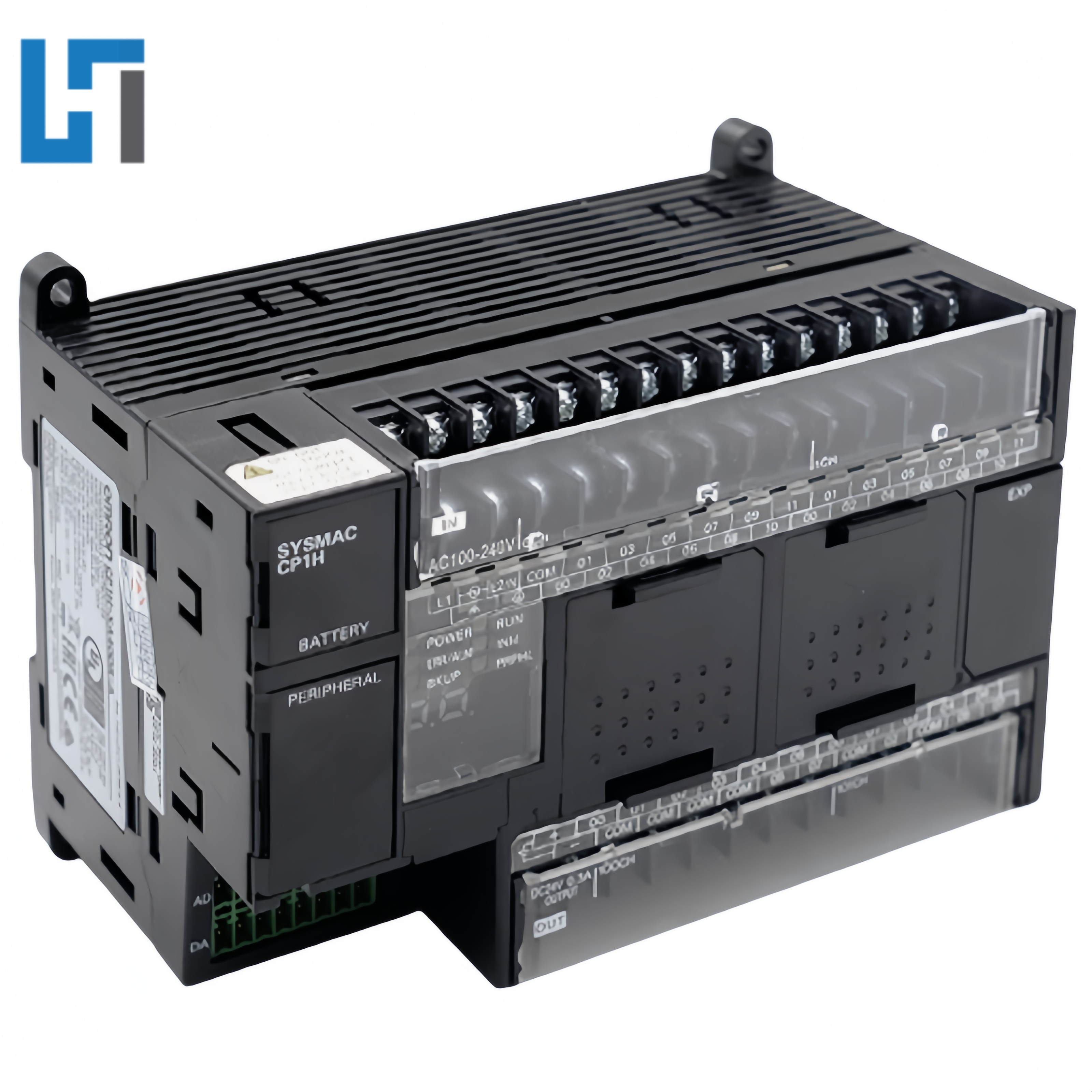

CP1H-X40DR-A Omron Plc Programming module Industrial Automation Controller |
|
Product model
|
CP1H-X40DR-A |
|
Country of origin |
China |
|
Product type
|
Plc Programming module |
| Power supply voltage |
100VAC ~ 240VAC |
|
Warranty |
1 Year |
40 Built-in I/O Points (24 Inputs / 16 Relay Outputs): Integrates 24 digital inputs and 16 relay outputs in a single unit, providing a robust control solution for medium-complexity machines without requiring additional I/O modules.
Relay Outputs for Universal Load Switching: Features 16 relay outputs capable of switching both AC and DC loads (up to 2 A per point), enabling direct control of contactors, motors, lamps, and solenoids with mixed voltage requirements.
High-Speed Processing & Large Memory: Offers fast scan times, 20K program steps (expandable with memory cards), and ample data memory—ideal for handling complex logic, data logging, and advanced control tasks.
Dual Communication Ports (USB + Serial): Includes a built-in USB programming port and an RS-232C serial port, enabling simultaneous programming, HMI connection, barcode reader integration, or Modbus RTU communication.
High-Speed Counter & Interrupt Capabilities: Supports high-speed counters up to 100 kHz and interrupt inputs, allowing precise monitoring of fast signals (e.g., encoders) and immediate response to critical events.
Scalable System Architecture: Can be expanded with up to seven CP1W option modules (I/O, communication, special function), allowing flexible system growth to meet evolving application needs—up to 360 I/O points total.
![]()
![]()
![]()
