1. Main Specifications
|
Product |

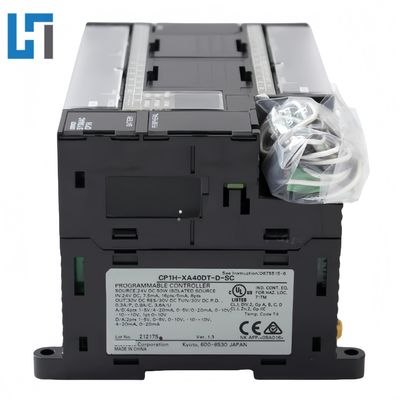

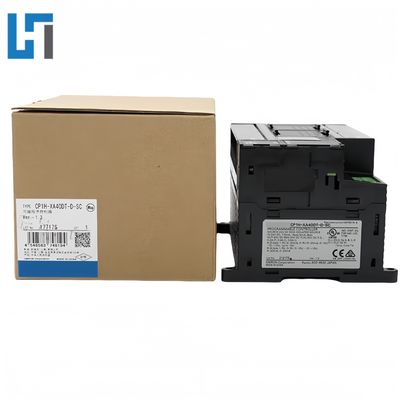

CP1H-XA40DT-D-SC Omron Plc Programming module Industrial Automation Controller |
|
Product model
|
CP1H-XA40DT-D-SC |
|
Country of origin |
China |
|
Product type
|
Plc Programming module |
|
Working temperature |
0℃ ~ 55℃ |
|
Warranty |
1 Year |
40 Integrated I/O Points with High-Speed Transistor Outputs: Features 24 digital inputs and 16 sinking transistor outputs, all capable of high-speed operation (up to 100 kHz), ideal for fast response applications and motion control.
Dual Ports: Built-in USB & Ethernet: Equipped with both a standard USB Type-B port (for programming and service) and a 10/100 Mbps Ethernet port—enabling simultaneous programming, HMI communication, and industrial networking (e.g., FINS, Modbus TCP).
Advanced Motion & Positioning Control: Supports high-speed pulse output (PTO) up to 100 kHz on multiple axes, enabling direct control of stepper and servo motors for precise positioning without additional motion modules.
High Processing Power & Memory: Offers significantly faster scan times, larger program capacity (20K steps standard, expandable), and more data memory compared to smaller CP1L models—suitable for complex automation tasks.
Analog I/O Built-In (XA Model): The "XA" designation means it includes 2 analog input channels (0–10 V, 4–20 mA) and 2 analog output channels, eliminating the need for separate analog modules in many applications.
Scalable & Future-Ready Platform: Supports up to seven CP1W expansion units (I/O, communication, special function), ensuring flexibility for growing system requirements and integration into larger control networks.
![]()
![]()
![]()
