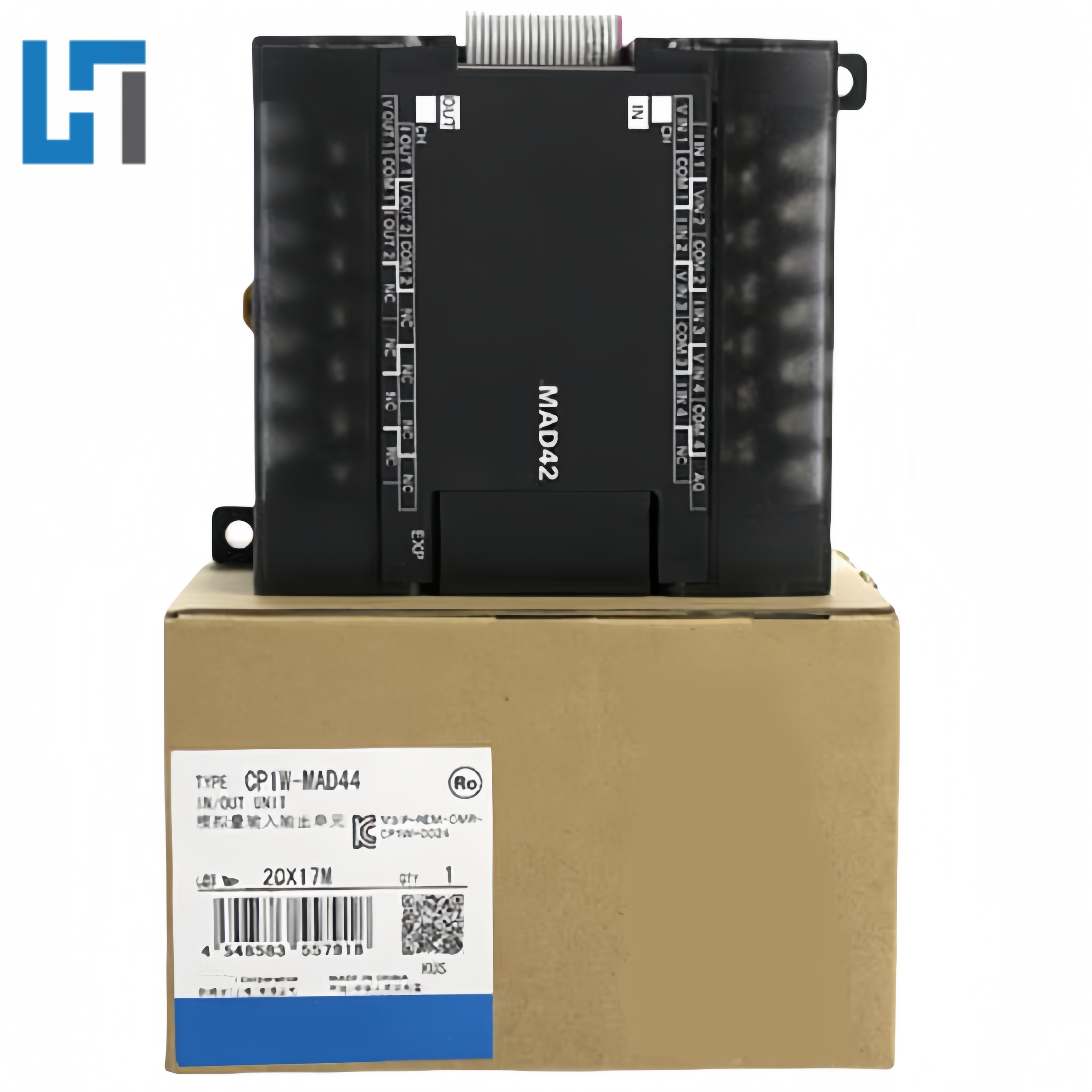

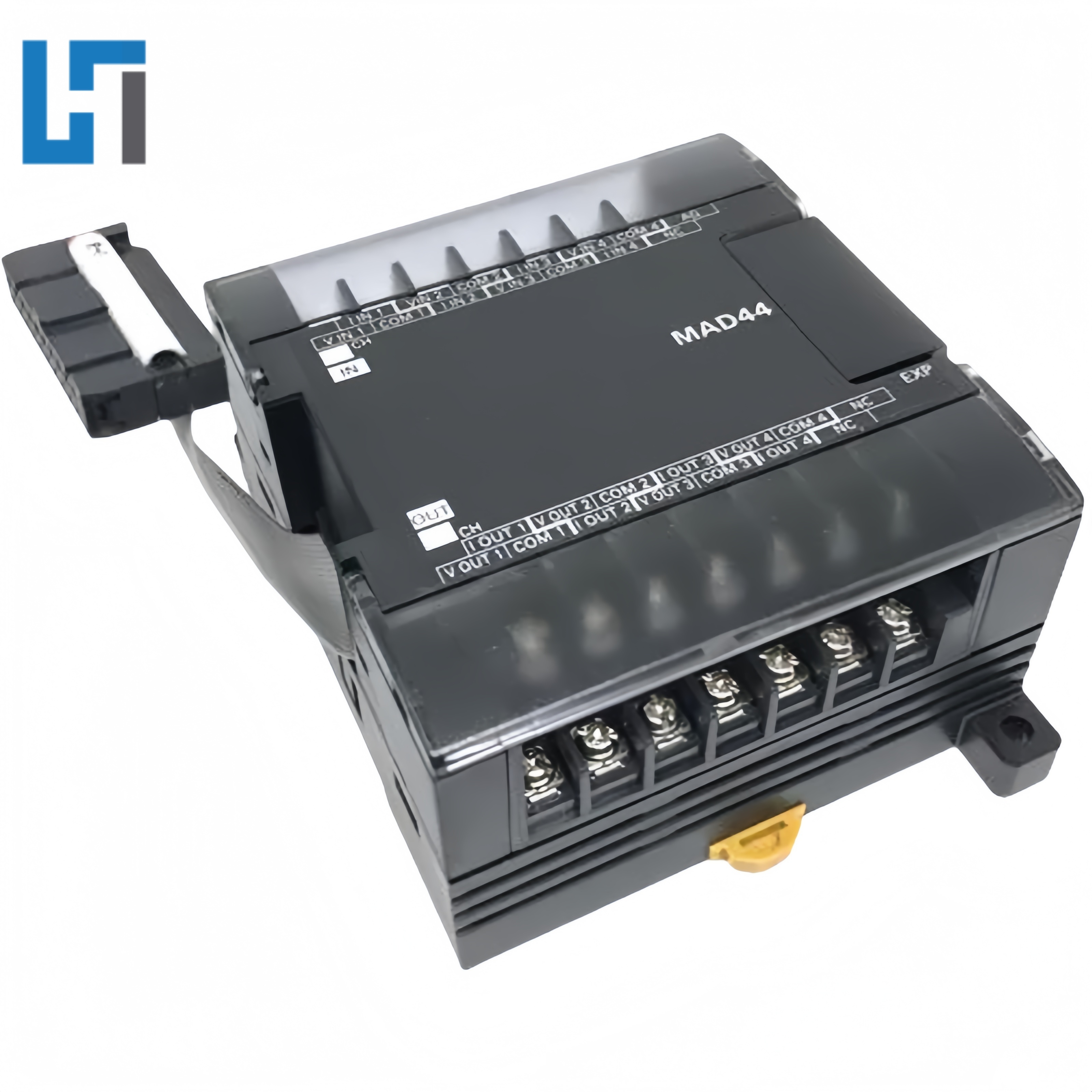

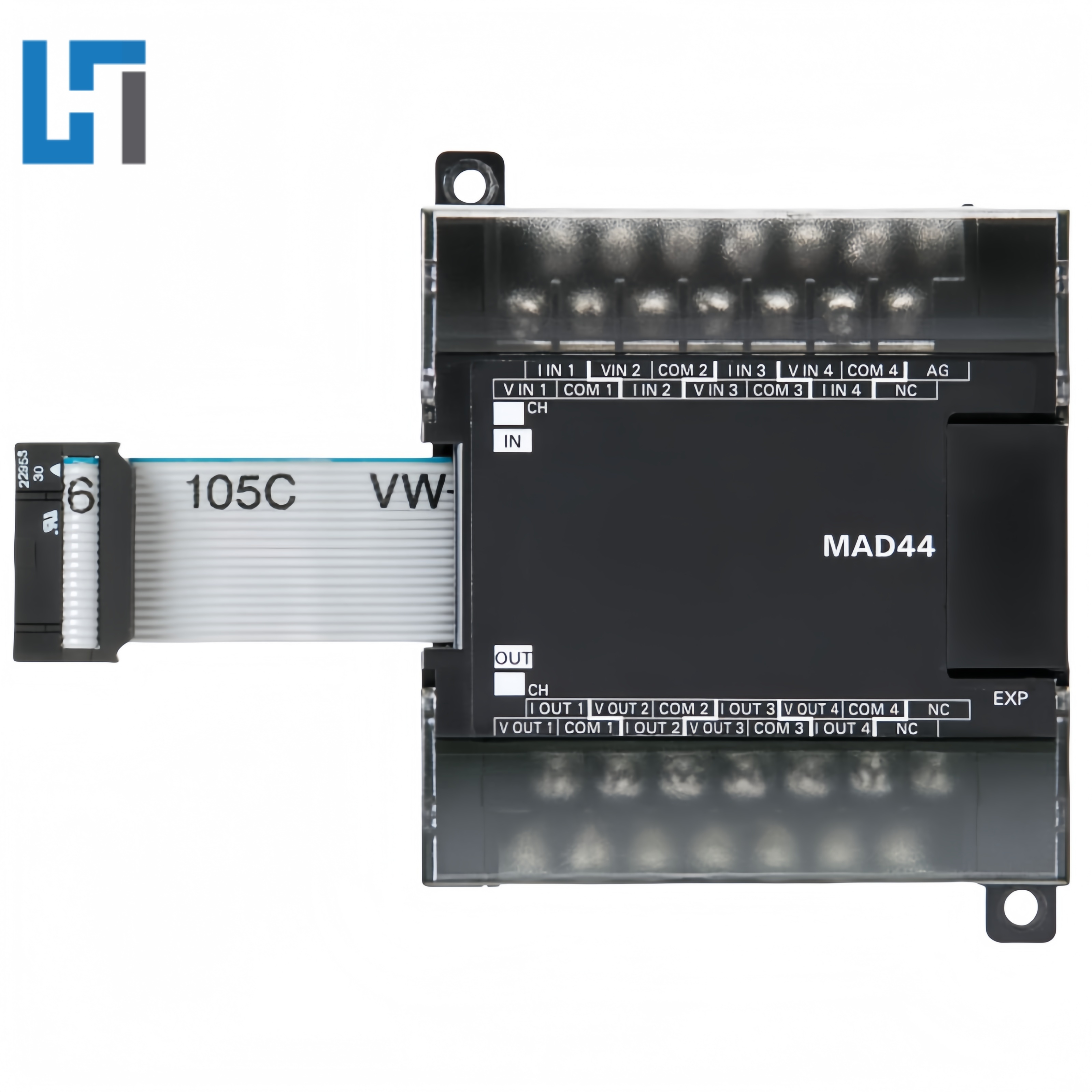

CP1W-MAD44 Omron New Original Plc Programming module Industrial Automation Controller

2. Key Selling Points

1. 4-Channel Analog I/O Integration (2 Input + 2 Output)
   Combines two analog voltage/current inputs and two analog voltage/current outputs in a single compact module—ideal for applications requiring both process monitoring (e.g., sensors) and control (e.g., valve positioning).

2. High-Accuracy 12-Bit Resolution
   Offers 12-bit A/D and D/A conversion with high accuracy and repeatability, ensuring precise measurement of analog signals (±0.3% max error) for reliable process control in demanding environments.

3. Flexible Input/Output Range Selection
   Supports multiple input ranges: Voltage: 1–5 V, 0–5 V, 0–10 V

   • Current: 4–20 mA, 0–20 mA, 0–10 mA
     Outputs support 0–10 V and 4–20 mA—enabling compatibility with a wide range of sensors, transmitters, and actuators.




4. Compact Size & Direct CPU Integration
   Part of the CP1W expansion module series, it connects directly to CP1E, CP2E, CP1L, or CP1H CPU units via the backplane—no external power supply or wiring required—saving panel space and simplifying system design.

5. Isolated Channels for Noise Immunity
   Features channel-to-channel and module-to-PLC isolation, minimizing electrical noise interference and ground loops—ensuring stable, accurate analog signal transmission in electrically noisy industrial environments.

6. Easy Configuration & Real-Time Monitoring
   Fully supported in Omron CX-Programmer and CX-Designer software, allowing simple setup, scaling, alarm configuration, and real-time monitoring of analog values—reducing commissioning time and improving diagnostics.
