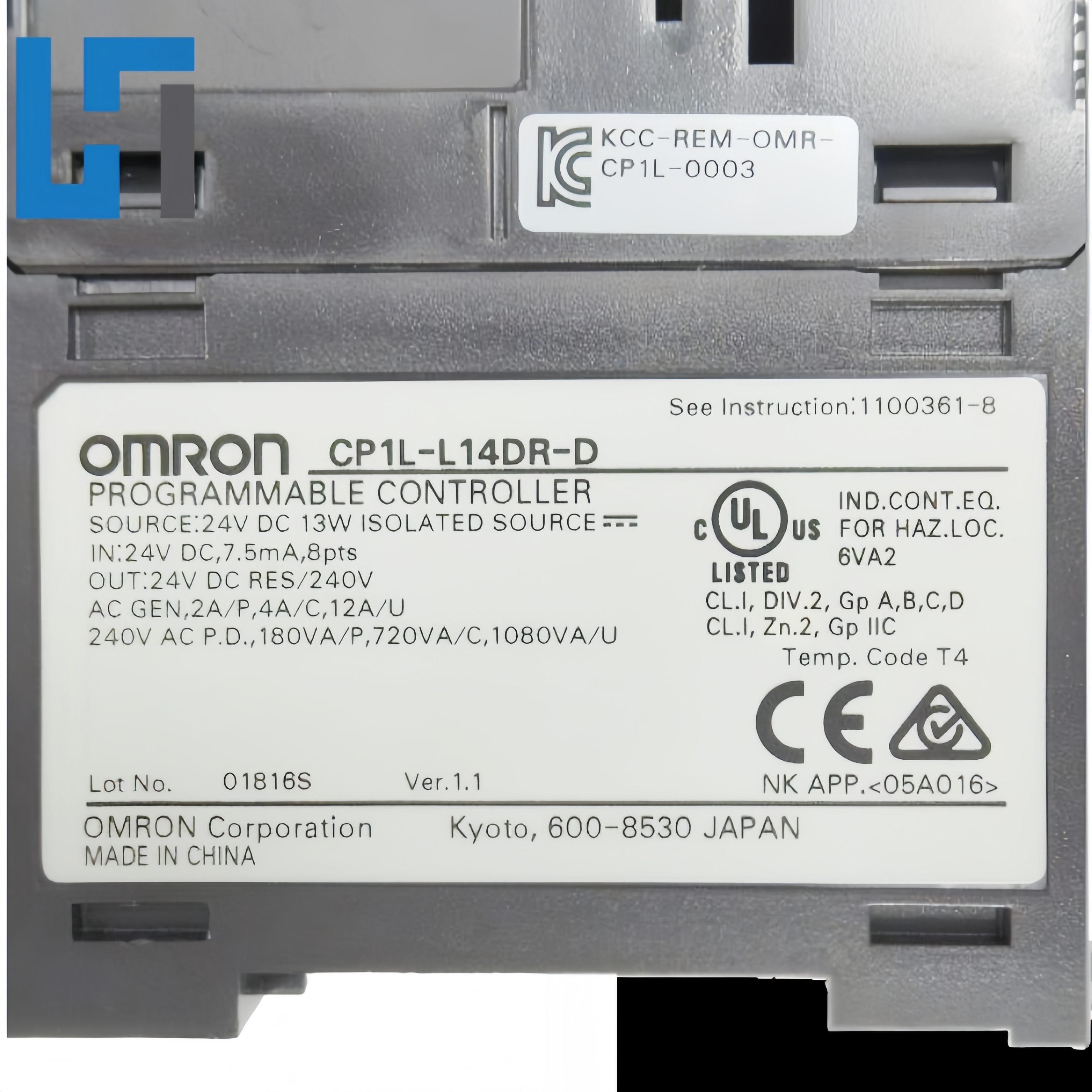

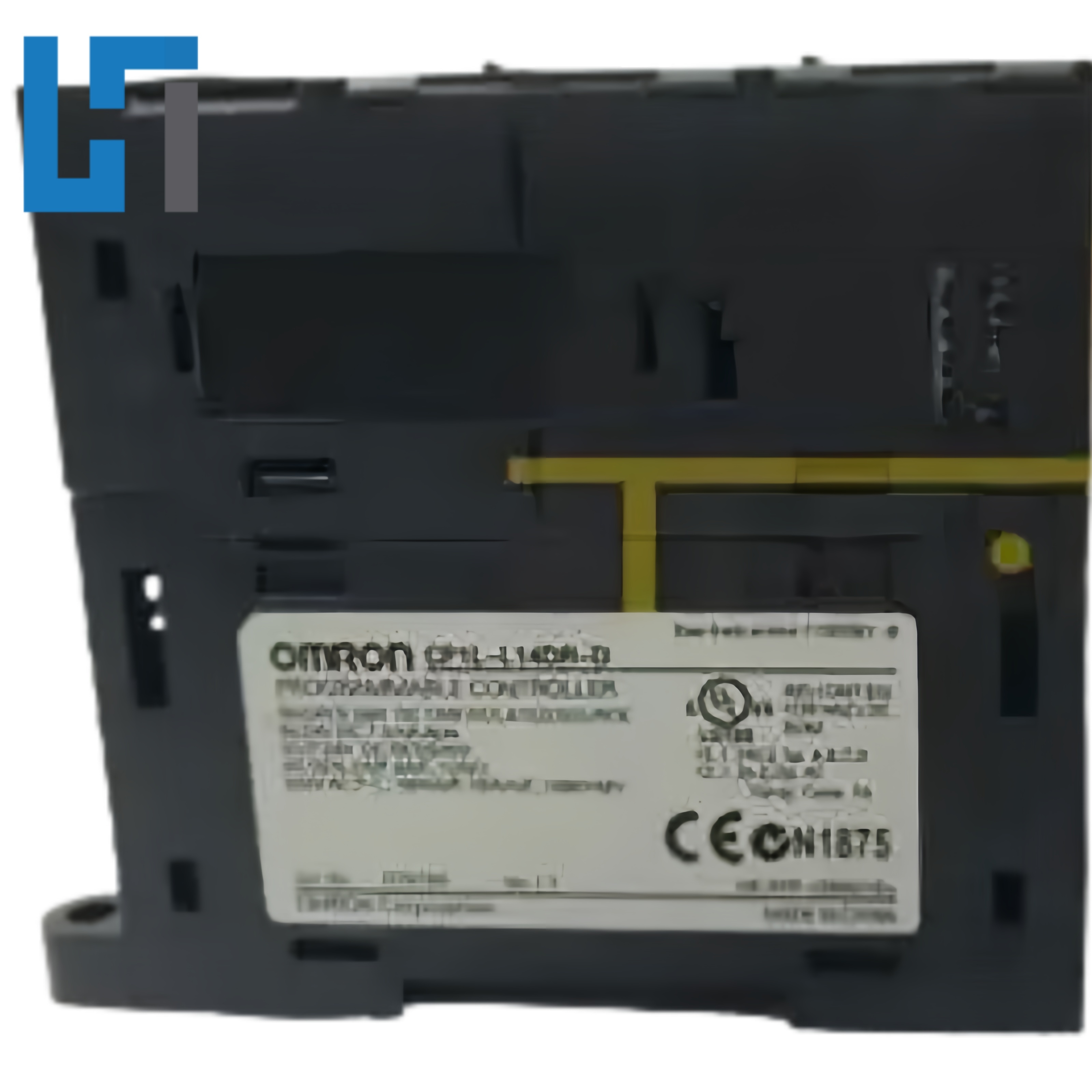

CP1L-L14DR-D Omron New Original Plc Programming module Industrial Automation Controller

2. Key Selling Points

1. Compact Core Unit with Sinking Transistor Outputs: Features 14 total I/O points (8 inputs, 6 outputs) in a space-saving design. The "-D" suffix indicates sinking (NPN) transistor outputs, optimized for high-speed switching applications and compatibility with control systems using positive common (PNP) sourcing sensors.

2. High-Speed Pulse Output for Precision Motion Control: Includes two 100kHz high-speed pulse output channels, enabling precise positioning and speed control of stepper or servo motors—ideal for applications like indexing, cutting, dispensing, and small automation systems requiring fast, accurate motion.

3. Expandable Architecture for Future Growth: Supports connection to up to three CP1W-series expansion I/O or function units, allowing flexible system scalability to add digital/analog I/O, communication interfaces, or temperature inputs as application needs evolve.

4. Built-in 24V DC Power Supply for Expansions: Provides an onboard 24V DC power output (150mA max) to power connected expansion units directly, eliminating the need for an external 24V supply and simplifying wiring, reducing panel space, and lowering system cost.

5. Integrated Analog & Communication Functions: Features 2 built-in analog input channels, support for temperature inputs (with expansion unit), USB programming port, and Modbus-RTU communication capability—enabling connectivity to HMIs, drives, and sensors without additional modules.

6. Reliable Performance & Easy Maintenance: Designed for industrial environments with robust noise immunity and diagnostic LEDs for power, status, and I/O. Programmed using Omron’s user-friendly CX-Programmer or Sysmac Studio software for fast development, commissioning, and troubleshooting.
